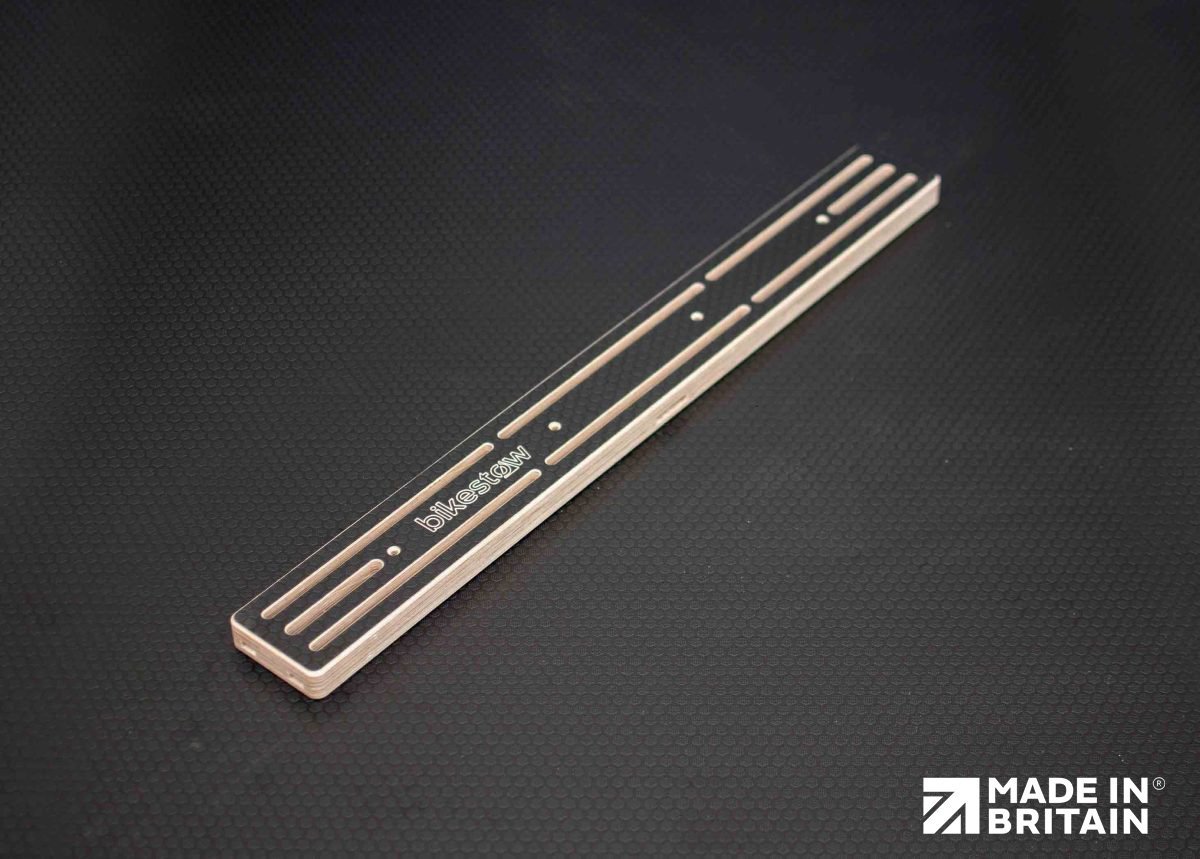

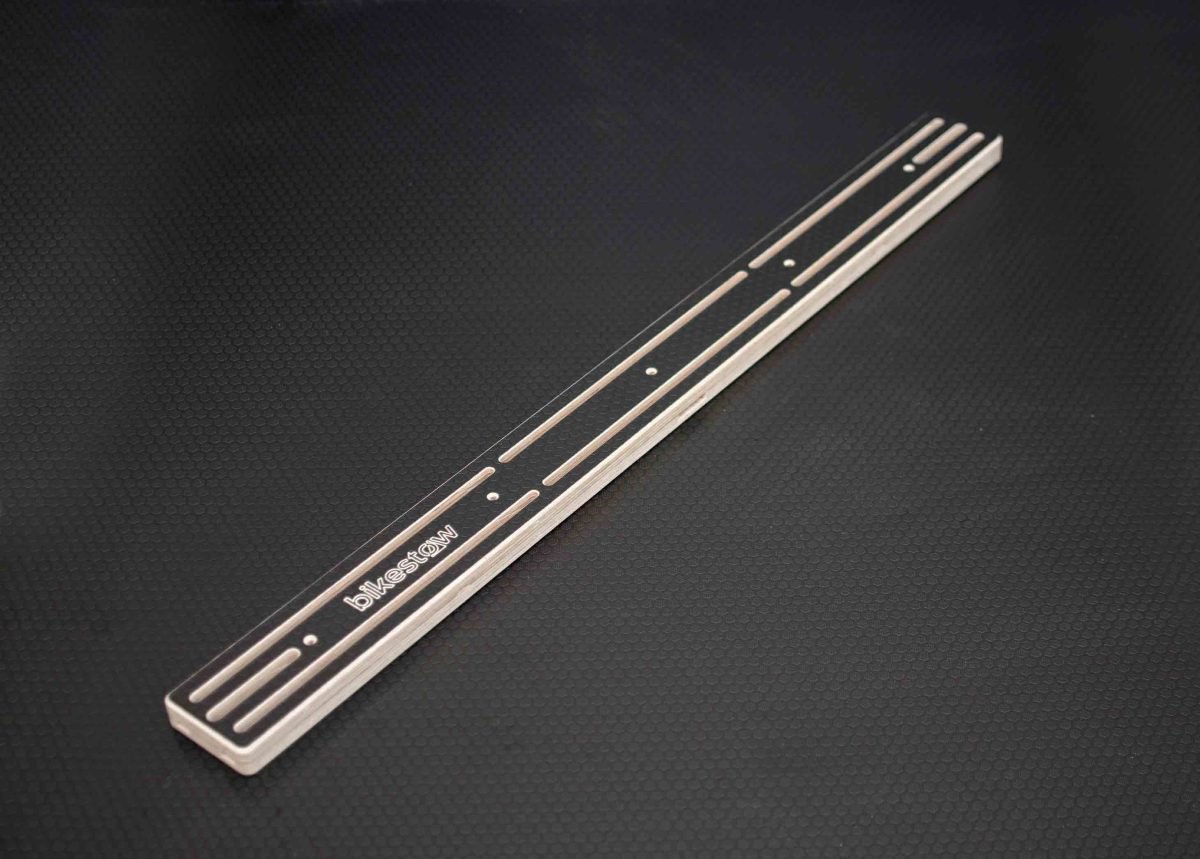

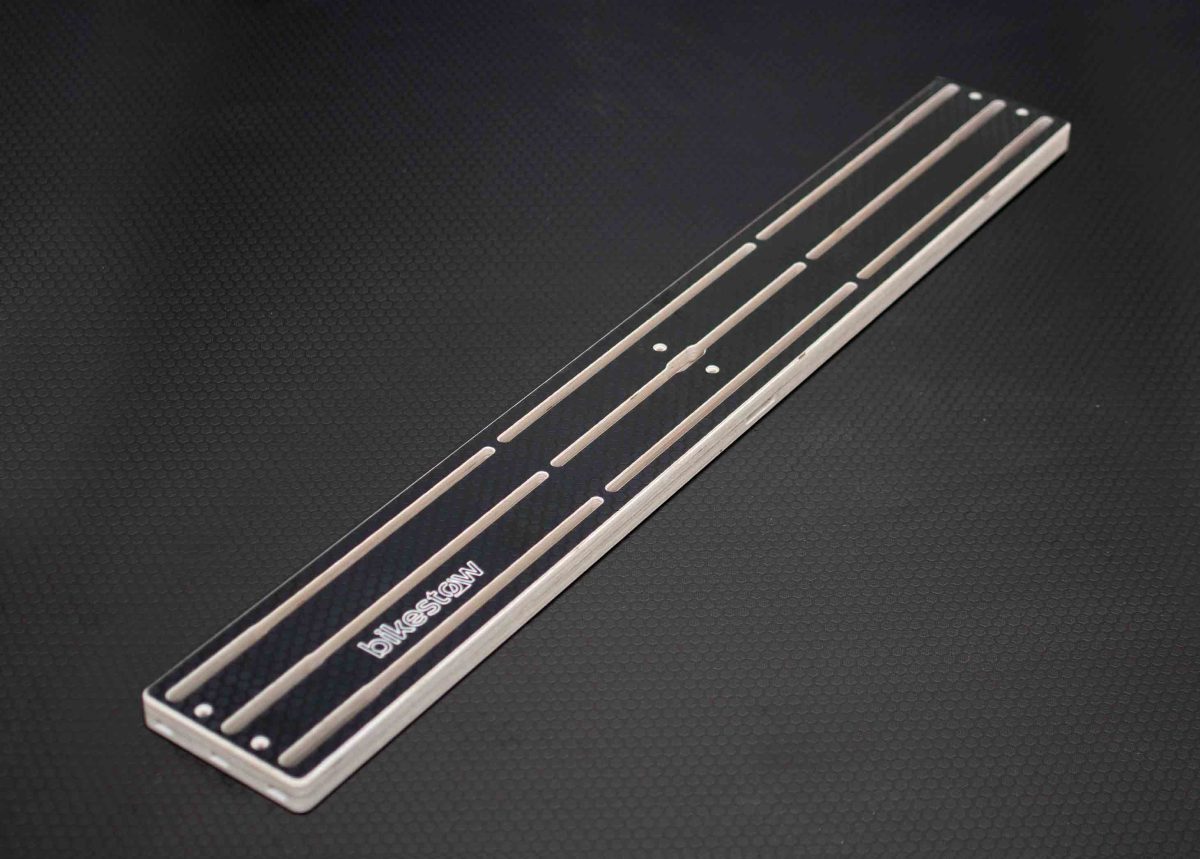

Fork Mount Rail

From £59.00

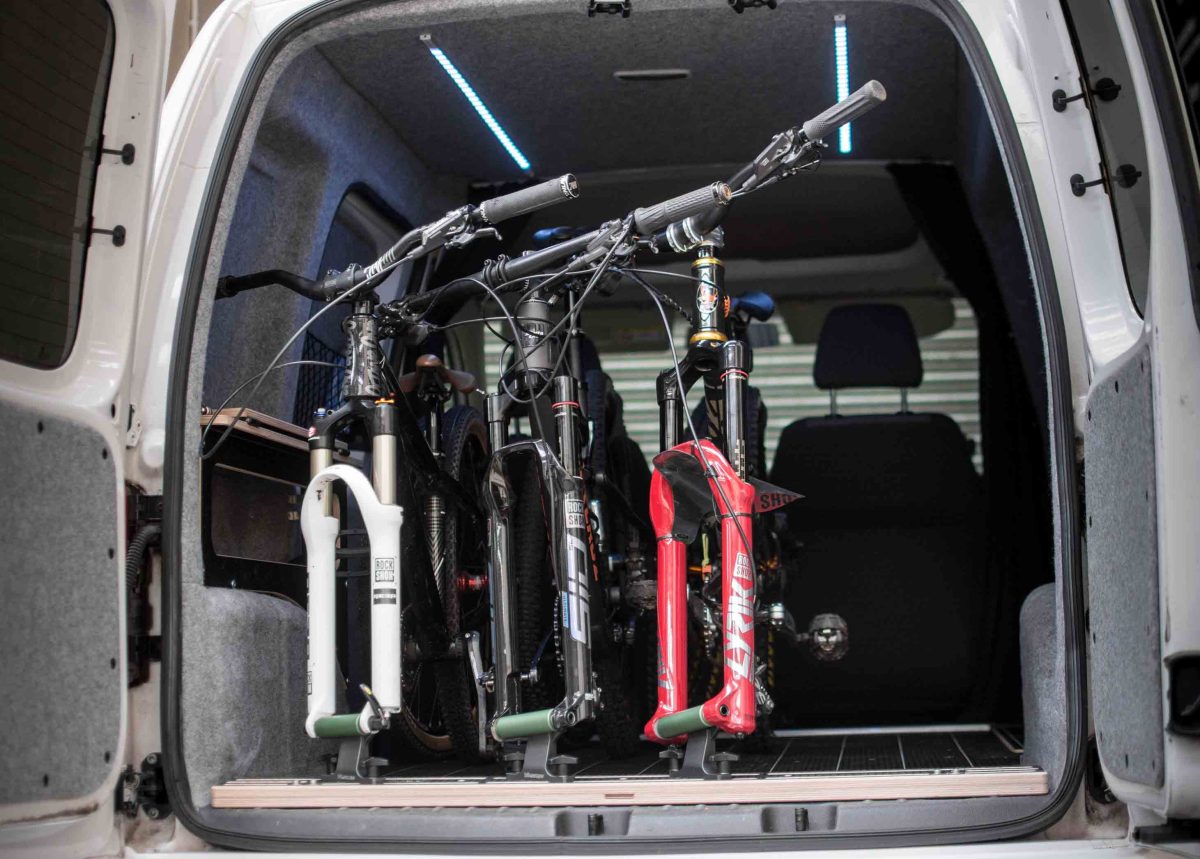

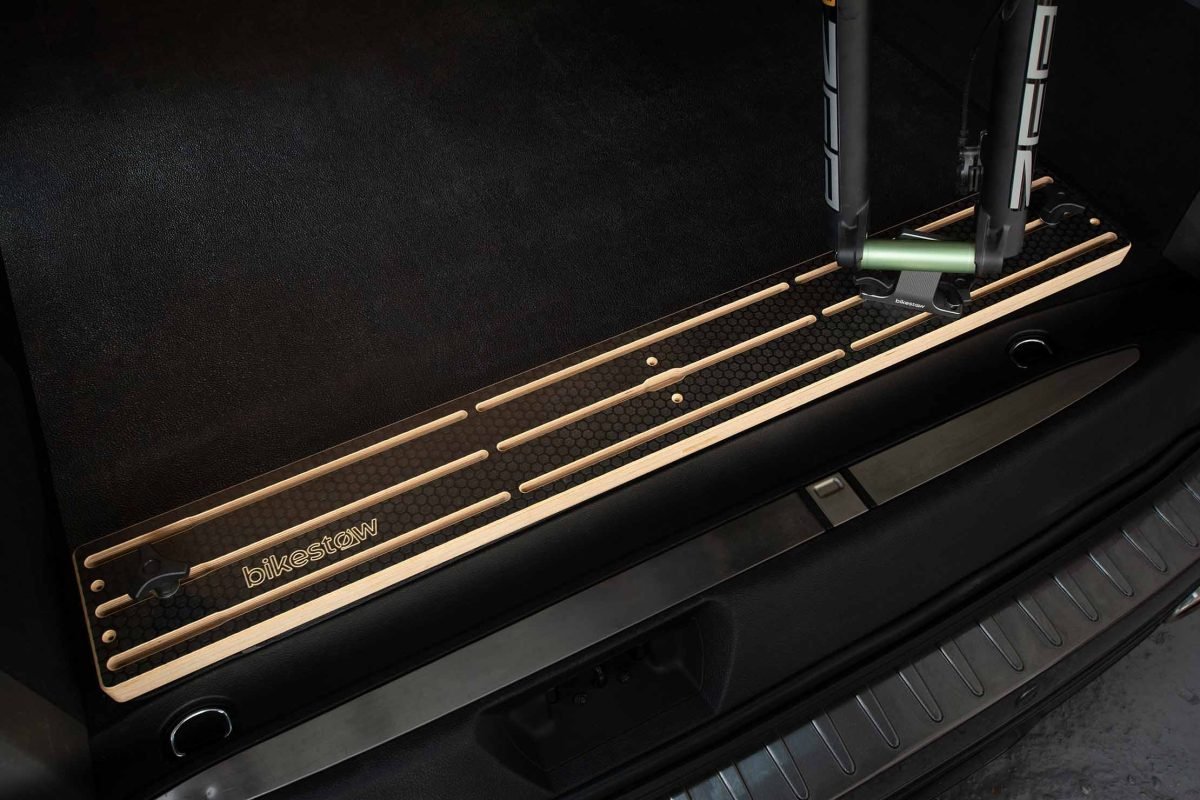

For fixing the BikeStow Fork Mount to your van, vehicle, or space.

  • Dual slots enable Fork Mounts to be offset backwards and forwards, or at an angle with the bike’s handlebars turned.

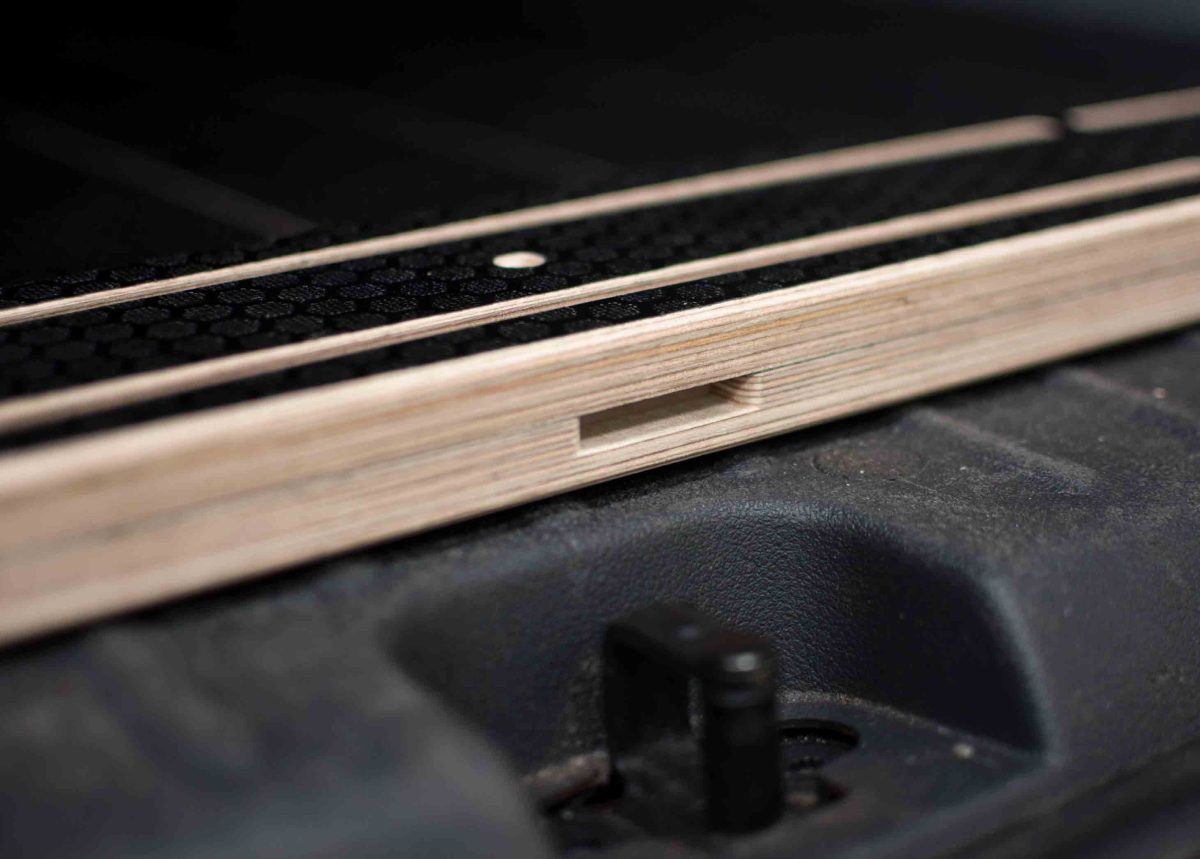

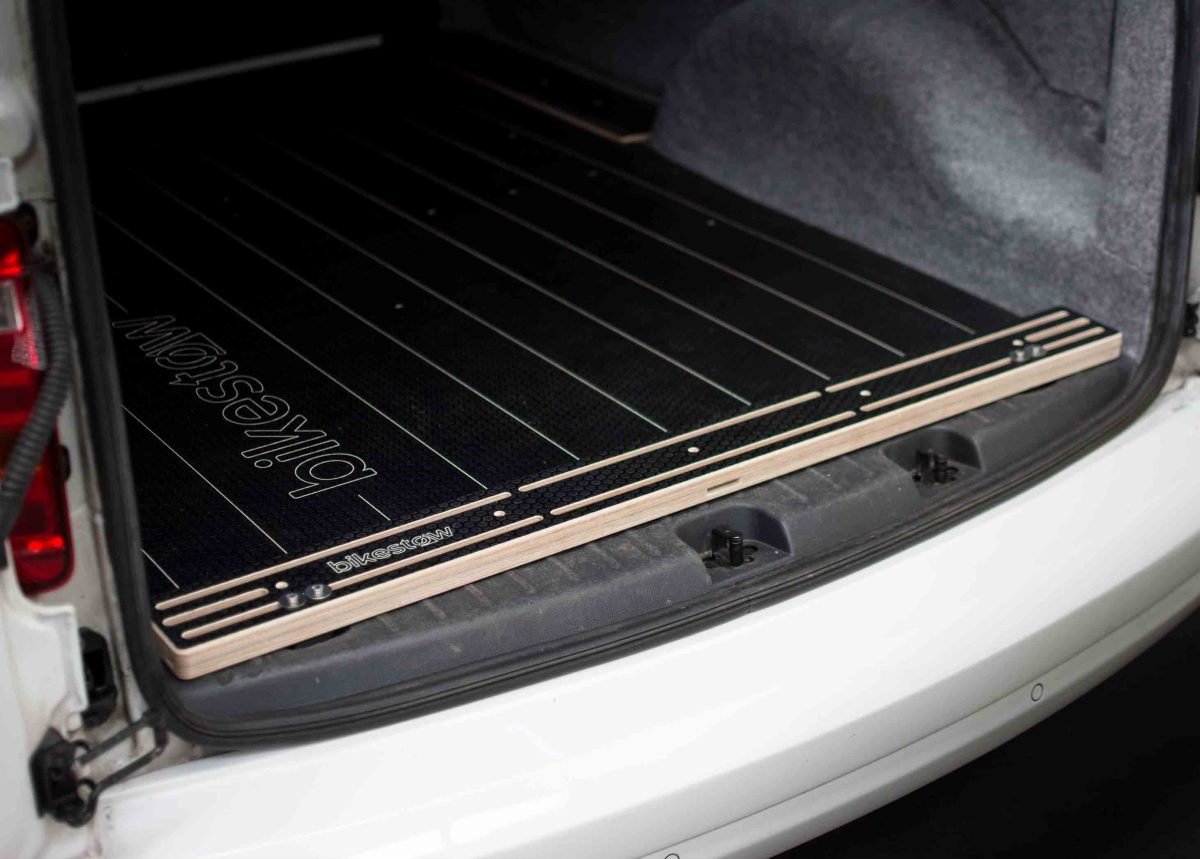

  • Three fixing slots on each end for bolting the Rail to your van’s cargo loop holes.
  • Pre-drilled countersunk holes for screwing directly to your floor with insert nuts or wood screws.

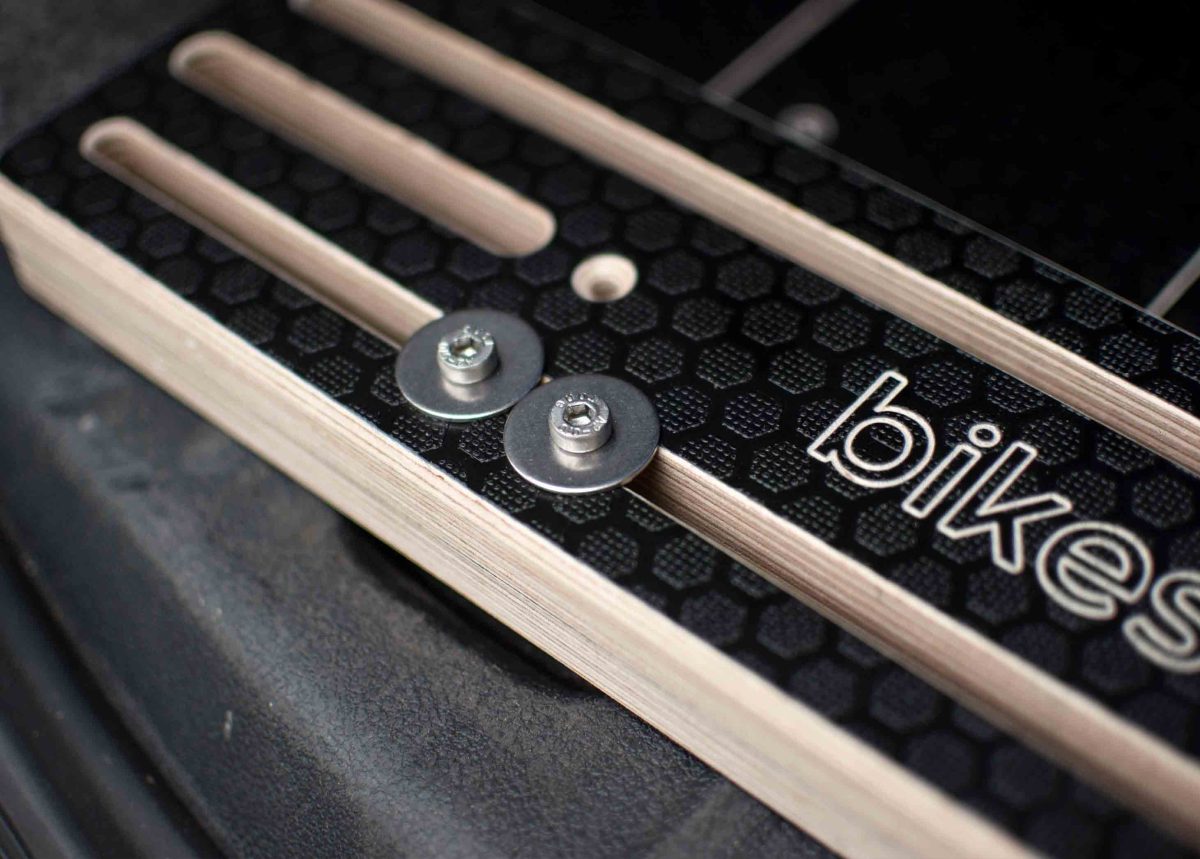

  • Fork Mounts attach to the Rail with M8 screws and rail nuts (available to purchase with our Fork Mounts).

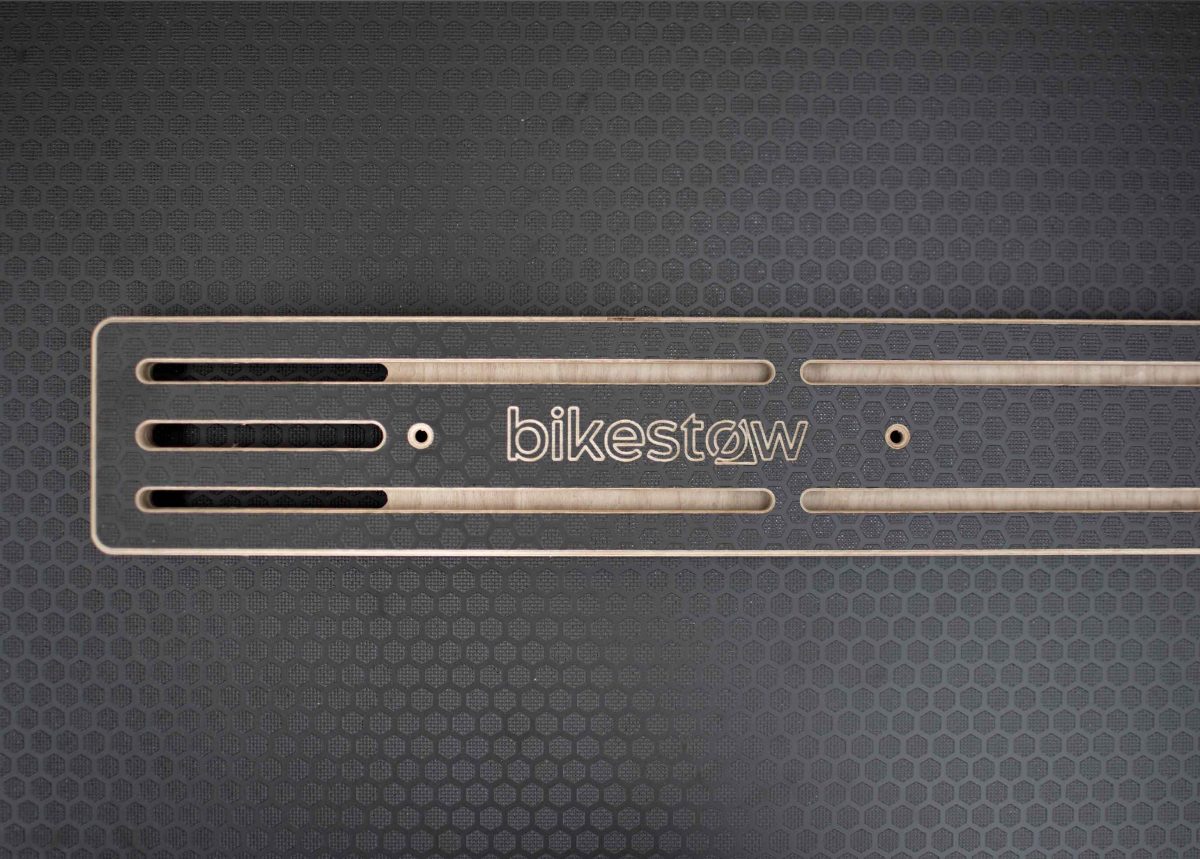

  • CNC routed in the UK from durable hexa birch plywood.

Out of stock? Sign up to our Waiting List!

SKU: 18 Categories: ,

CLICK HERE FOR INSTRUCTIONS!

VEHICLE COMPATIBILITY
Vehicle Mounting KitRailMountain BikesRoad Bikes
DIY Insert Nut KitAnyYesYes
VW Caddy MK3 & MK4Dual 1130mmYesNo
VW Transporter T5 &T6Coming Soon!YesYes
Ford Transit Connect MK3Coming Soon!YesYes
Citreon Berlingo MK3Dual 1130mmYesNo
Have another vehicle? Contact Us!

Our advice is to always measure and mock-up the bikes in your vehicle first!

Roughly position the bikes in your vehicle with the front wheel removed, and check the handlebars won’t clash with anything such as the rear door as it closes. Also check that your cargo area is long enough to fit the bike.

Check the dimensions of your van and it’s cargo points, and compare them against these drawings:

If you have any questions or are unsure, feel free to Contact Us and we’ll happily help out!

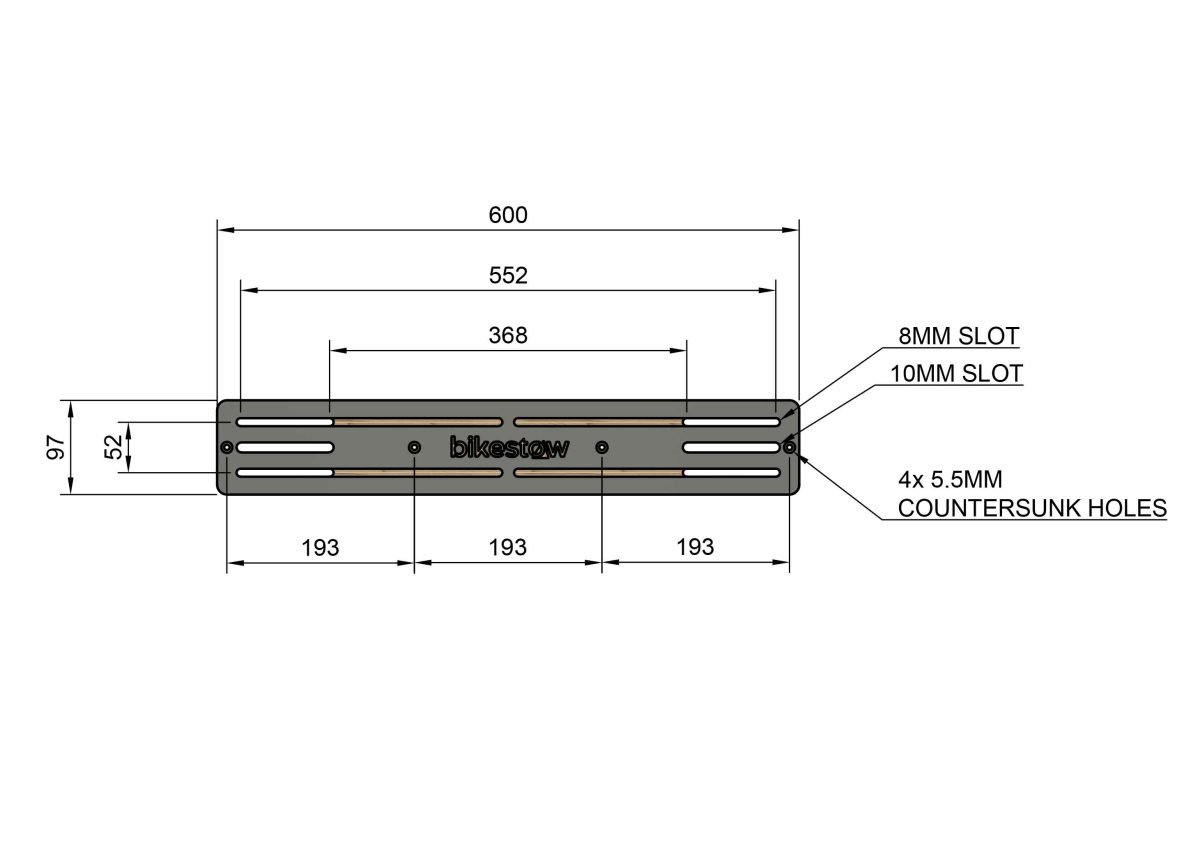

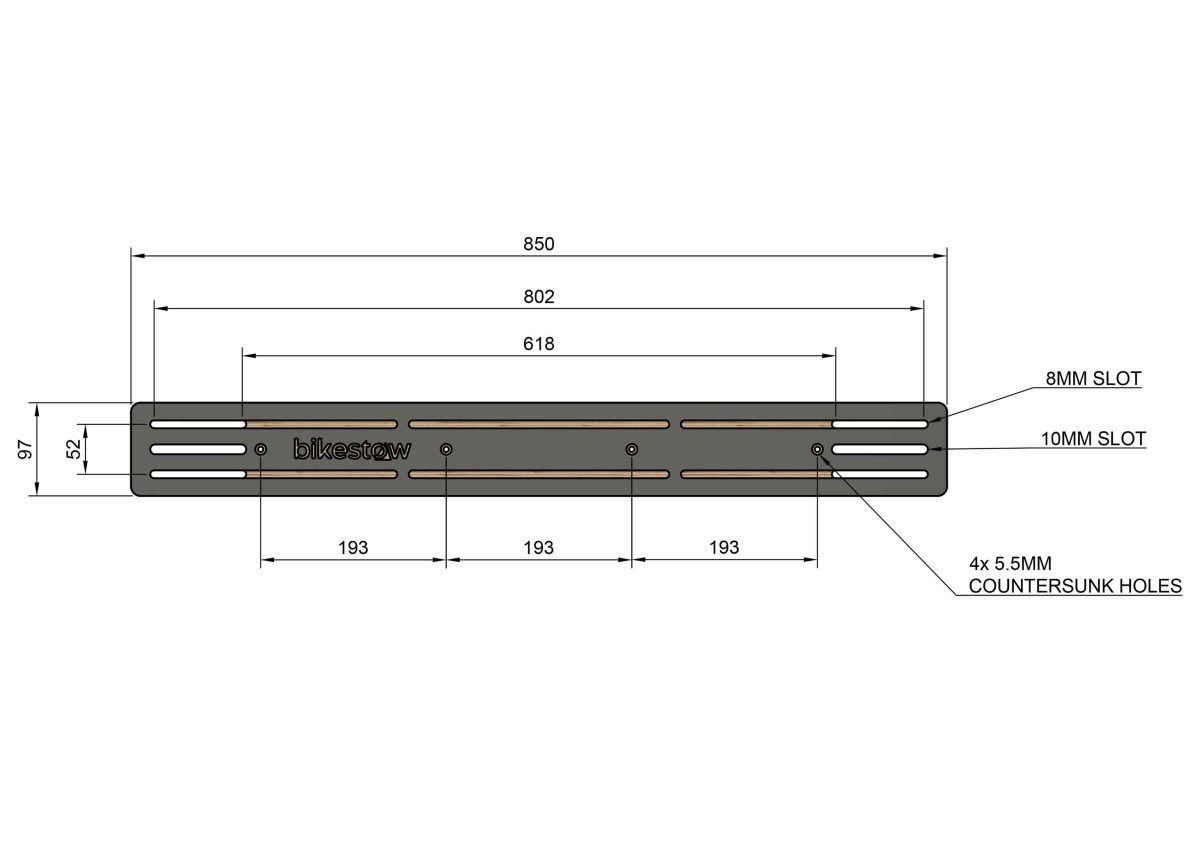

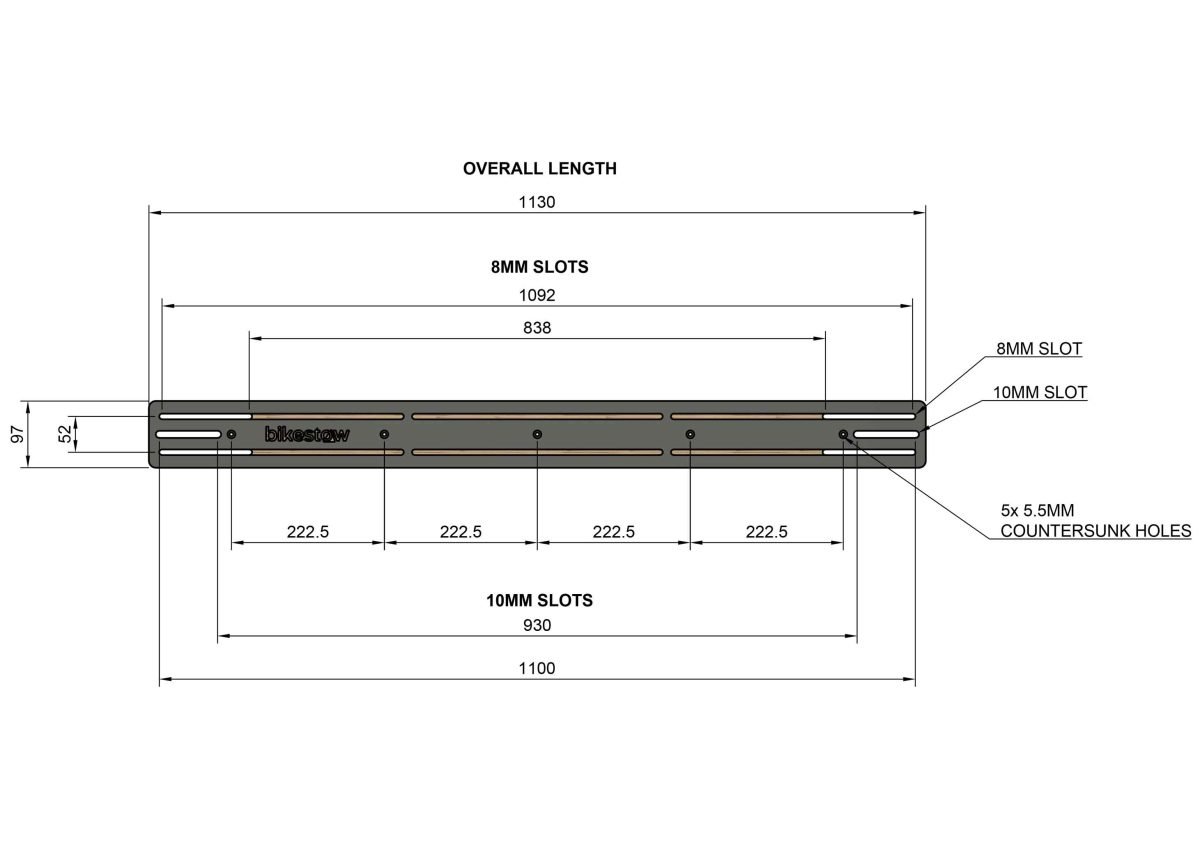

RAIL DIMENSIONS

Click on the links below to open fully-dimension drawings for each Rail:

DRILLING TEMPLATES

If you’re using the DIY Insert Nut Kit or fixing the Rail directly to your floor with screws, you might want to use our drilling templates.

Simply print out the document onto A4 paper at 100% scale, line up the cross-hairs, and tape the pages together to create a full-scale drawing of the Rail. Use a ruler to double check it printed at the correct scale, and then use the hole locations on the drawing to mark or punch drill locations on your floor.

HOW MANY BIKES WILL IT TAKE?
  • 600mm Rail = 1-2 bikes
  • 850mm Rail = 2-3 bikes
  • 1130mm Rail = 3-4 bikes















Weight2.5 kg
Dimensions115 × 30 × 12 cm
